一、部署前准备工作
1.1 部署项目情况
1.1.1 业务部署架构
单体服务架构（一个进程、一台虚拟机、一台主机）
分布式服务架构（多个进程、多个主机）
微服务架构（容器技术）
超微服务架构（serverless中体现）
1.1.2 项目涉及第三方服务
关系型数据库系统mysql
缓存服务 Redis memcache
协调服务 zookeeper
消息中间件服务kafka rabbitmq
服务注册 服务发现 nacos
1.1.3 项目所需资源
计算资源
cpu
内存
存储资源
本地存储
网络存储
1.2 部署项目所需要的k8s资源
1.2.1 多k8s集群
测试环境
开发环境
预发布环境
生产环境
1.2.2 使用namespace隔离项目或环境
每个项目独立使用namespace
每个环境独立使用namespace
1.2.3 有状态应用部署
不部署时考虑那些系统使用有状态应用部署方式
statefulset
数据持久化存储动态供给（pv及pvc）
例如：mysql
1.2.4 无状态应用部署
deployment
数据持久化存储动态供给
例如：tomcat
1.2.5 暴漏外部访问
server类型
有状态应用部署使用headless service
无状态应用部署使用ClusterIP
暴露服务方式
ingress
api gateway
1.2.6 密钥及配置管理
configmap
mysql配置文件
secret
k8s集群使用harbor私有仓库镜像
1.3 项目基础镜像准备
本次发布一个Java项目，以war包方式发布，需要使用tomcat作为项目基础镜像。可直接下载使用，也可选择顶置。
1.3.1 定制tomcat镜像
1.3.1.1 直接下载
docker pull tomcat1.3.1.2 通过Dockerfile文件定制

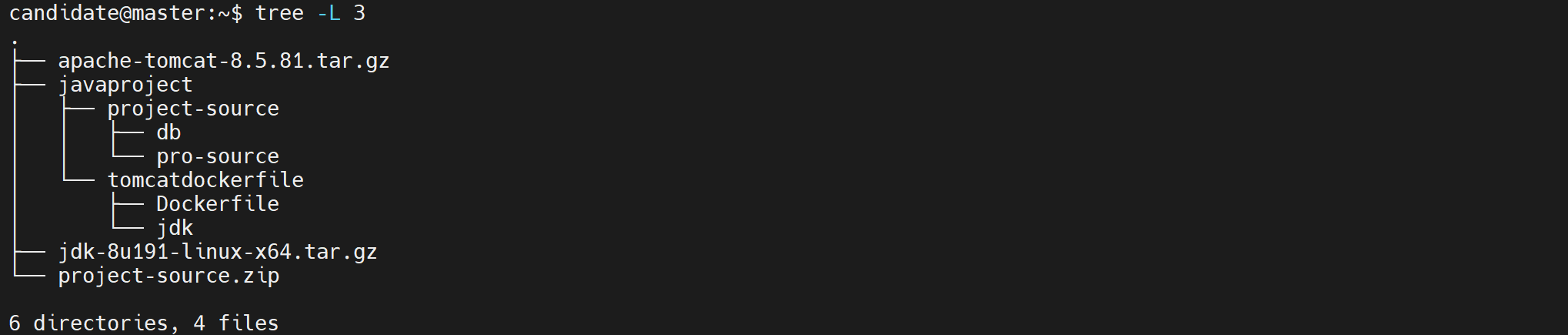

mkdir tomcatdockerfile
cd tomcatdockerfile/
cat Dockerfile
FROM centos:centos7
MAINTAINER "xxxxx.qq.com"
ENV VERSION=8.5.81
ENV JAVA_HOME=/usr/local/jdk
RUN curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo
RUN yum install -y wget
RUN wget https://archive.apache.org/dist/tomcat/tomcat-8/v${VERSION}/bin/apache-tomcat-${VERSION}.tar.gz --no-check-certificate
RUN tar xf apache-tomcat-${VERSION}.tar.gz
RUN mv apache-tomcat-${VERSION} /usr/local/tomcat
RUN rm -rf apache-tomcat-${VERSION}.tar.gz /usr/local/tomcat/webapps/*
RUN mkdir /usr/local/tomcat/webapps/ROOT # 网站数据目录
ADD ./jdk /usr/local/jdk
RUN echo "export TOMCAT_HOME=/usr/local/tomcat" >> /etc/profile
RUN echo "export JAVA_HOME=/usr/local/jdk" >> /etc/profile
RUN echo "export PATH=$TOMCAT_HOME:$JAVA_HOME:$PATH" >> /etc/profile
RUN echo "export CLASSPATH=$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar" >> /etc/profile
RUN source /etc/profile
EXPOSE 8080
CMD ["/usr/local/tomcat/bin/catalina.sh","run"]

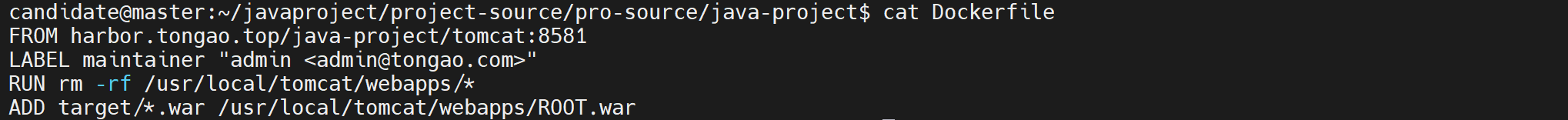

docker build -t harbor.tongao.top/java-project/tomcat:8581 .测试镜像
candidate@master:~$ docker run -d -p 9090 harbor.tongao.top/java-project/tomcat:8581
candidate@master:~$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2a72976eb8c5 harbor.tongao.top/java-project/tomcat:8581 "/usr/local/tomcat/b…" 15 seconds ago Up 15 seconds 0.0.0.0:9090->8080/tcp, :::9090->8080/tcp nice_ramanujan可以看到容器一直处于UP状态，也可以访问9090查看
1.4 项目编排部署
1.4.1 项目资源
JAVA项目源码
JAVA项目容器镜像
JAVA项目资源清单文件
数据库系统MySQL
1.4.2 项目镜像构建方法
手动构建容器镜像（Dockerfile）
自动构建容器镜像
1.5 项目部署工作流程
基于项目源码制作容器镜像
编写项目部署资源清单文件
使用资源清单文件创建项目Service
使用ingress暴露服务实现项目对外可访问

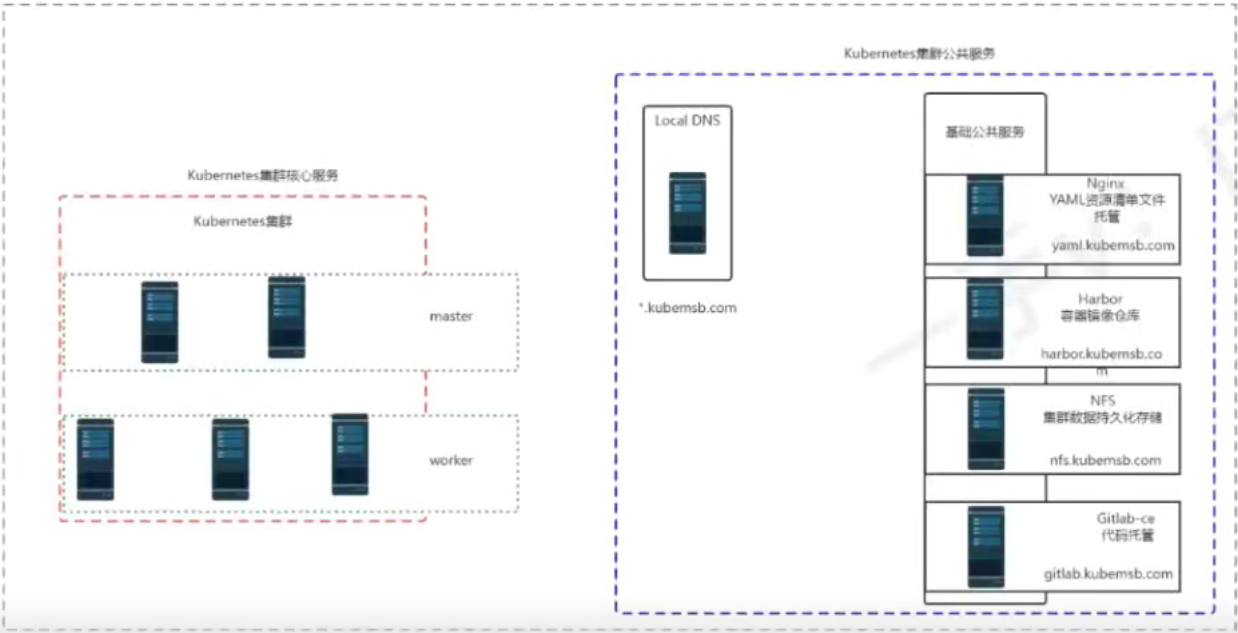

1.6 项目部署基础环境架构
二、存储准备
本次使用NFS服务作为K8S集群后端存储，实现kubernetes集群持久存储动态供给，详细可见kubernetes集群公共服务章节
candidate@master:~$ kubectl get storageclasses.storage.k8s.io
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
nfs rancher.io/local-path Delete Immedidate false 23d三、项目容器镜像仓库及项目源码准备
3.1 项目容器仓库准备
3.1.1 Harbor部署
参考kubernetes集群公共服务中容器镜像托管仓库章节

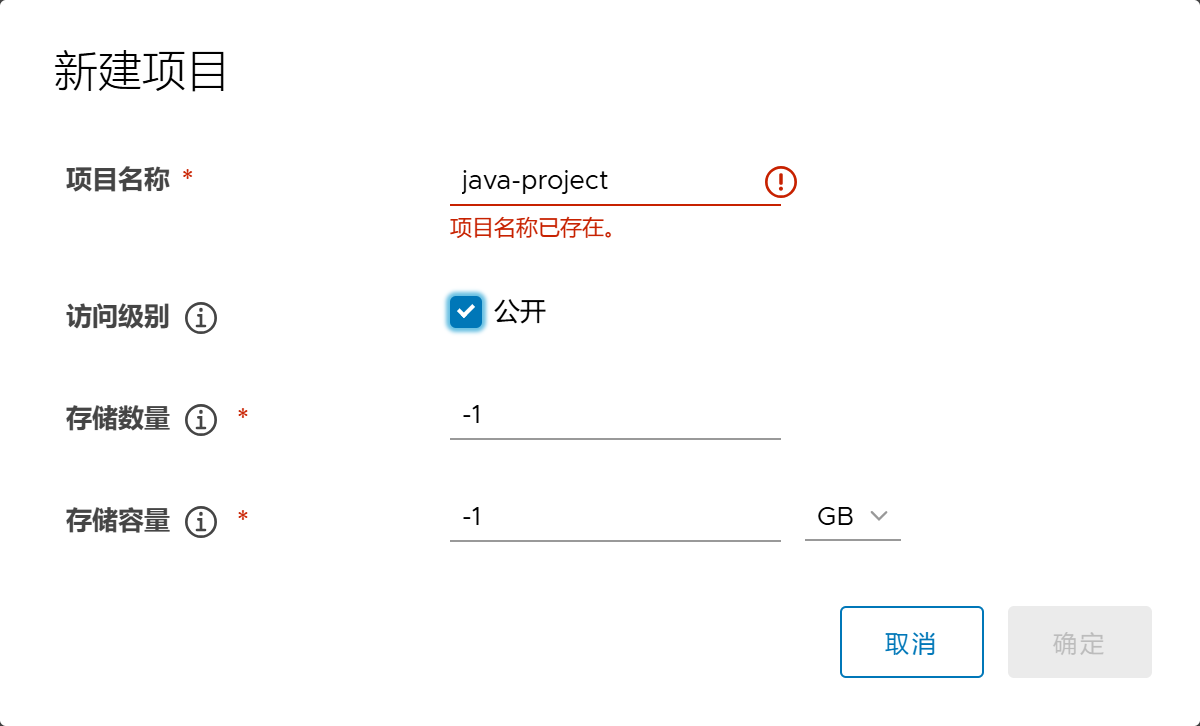

3.1.2 Harbor添加容器镜像仓库
3.2 项目源码及编译环境准备
3.2.1 项目源码准备
3.2.2 源码编译环境准备jdk & maven
用于对java项目代码进行编译打包代码

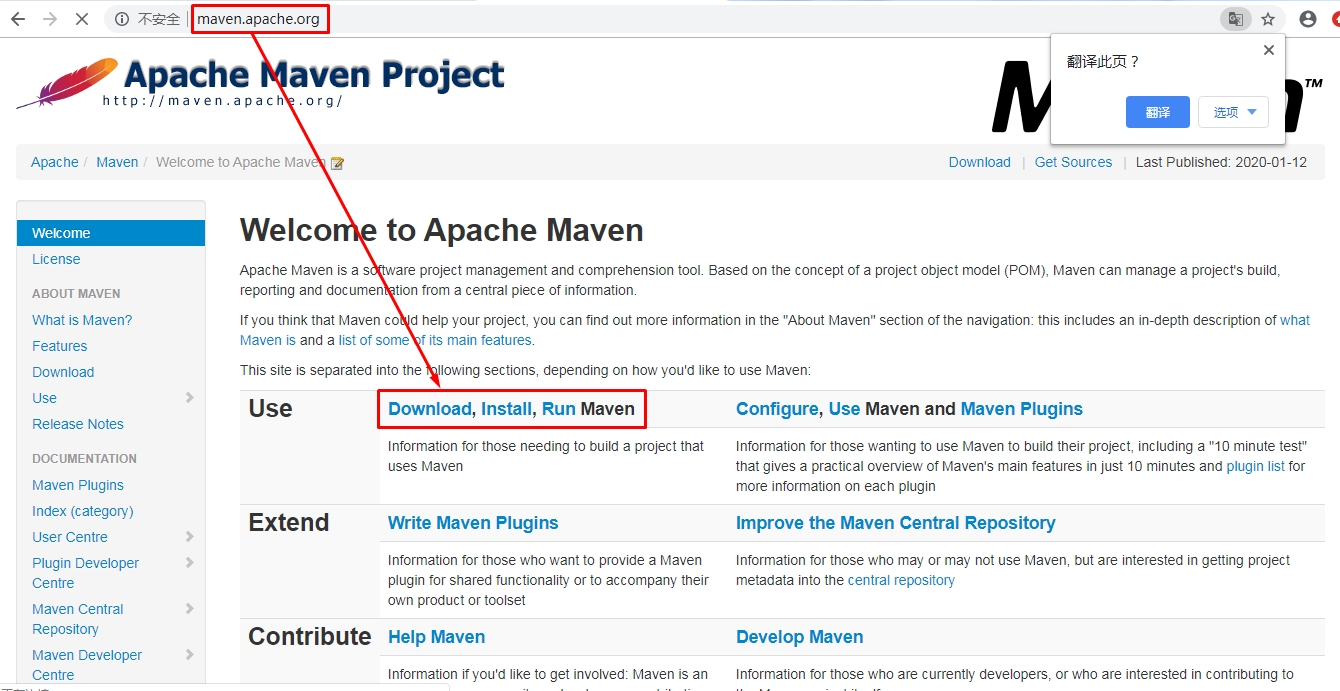

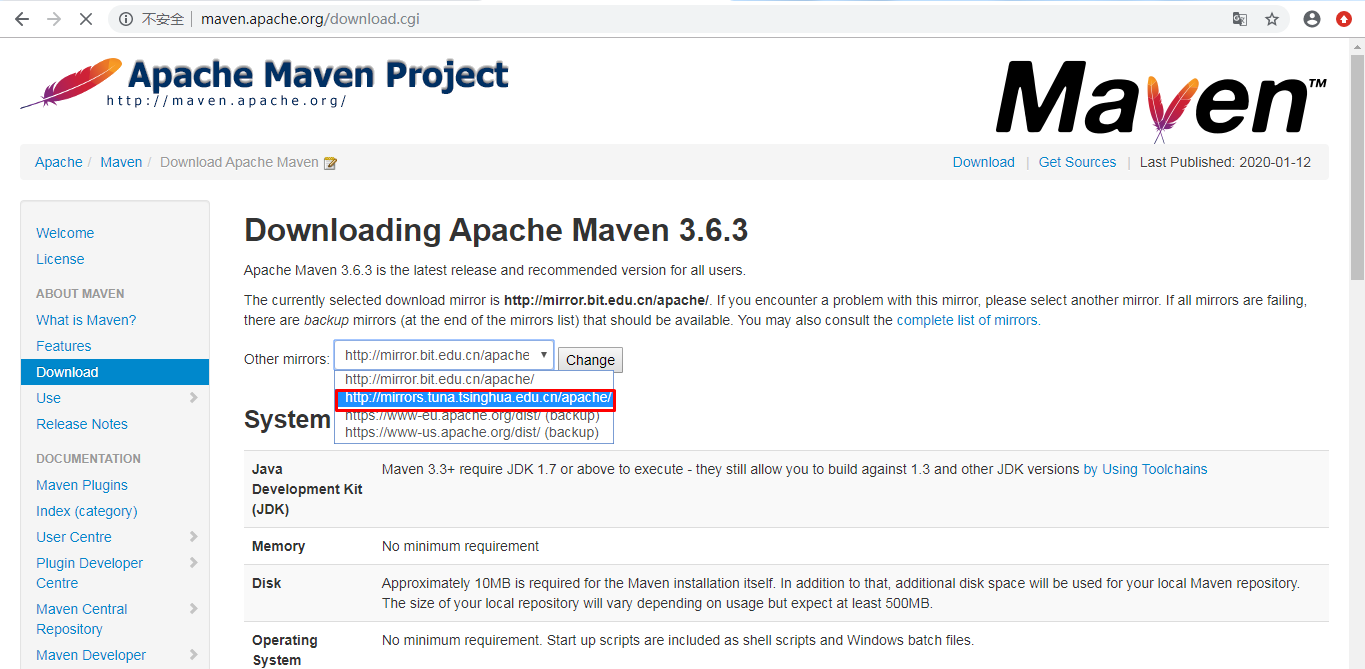

3.2.2.1 下载maven

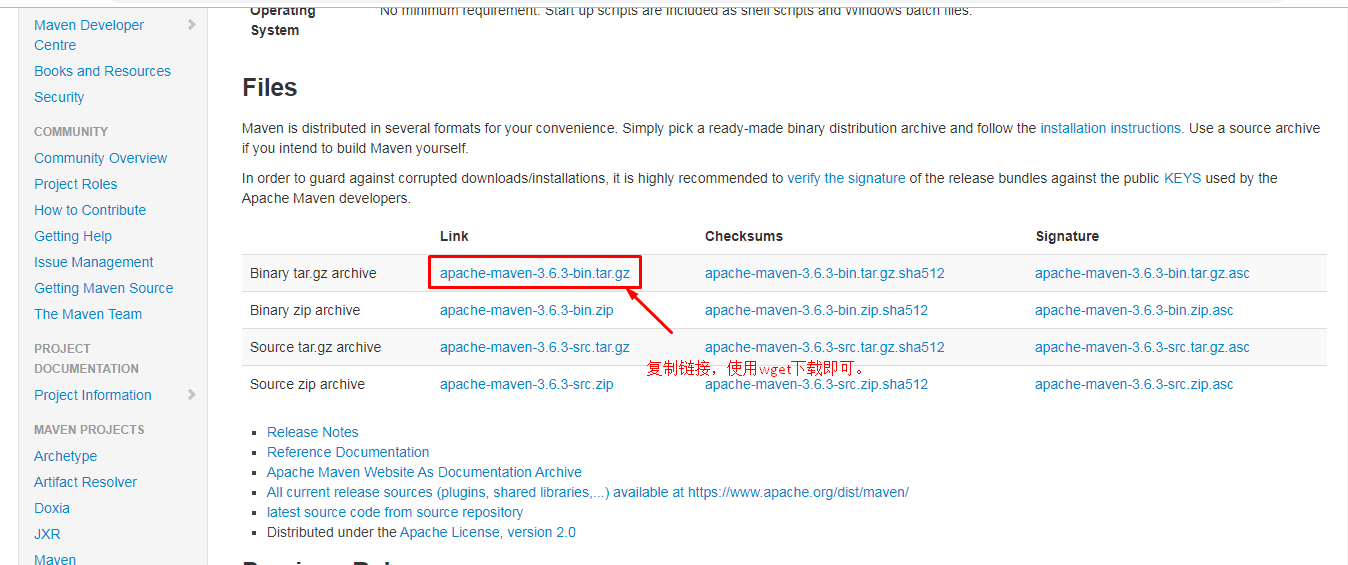

wget http://mirrors.tuna.tsinghua.edu.cn/apache/maven/maven-3/3.6.3/binaries/apache-maven-3.6.3-bin.tar.gz3.2.2.2 安装maven
# 必须要有官方的jdk，不然maven会报错
tar xf jdk-8u191-linux-x64.tar.gz
mv jdk1.8.0_191 /usr/local/jdk
ls /usr/local/jdk
tar xf apache-maven-3.6.3-bin.tar.gz
mv apache-maven-3.6.3 /usr/local/maven
cat /etc/profile.d/maven.sh
export JAVA_HOME=/usr/local/jdk
export MAVEN_HOME=/usr/local/maven
export PATH=${MAVEN_HOME}/bin:${JAVA_HOME}/bin:$PATH
source /etc/profile
mvn -v
Apache Maven 3.6.3 (cecedd343002696d0abb50b32b541b8a6ba2883f)
Maven home: /usr/local/maven
Java version: 1.8.0_191, vendor: Oracle Corporation, runtime: /usr/local/jdk/jre
Default locale: zh_CN, platform encoding: UTF-8
OS name: "linux", version: "3.10.0-1062.9.1.el7.x86_64", arch: "amd64", family: "unix"使用maven编译后会生成war包
四、项目部署
4.1 本项目部署思路
4.1.1 本次部署的应用
数据库 MySQL
Web应用 Tomcat
4.1.2 有状态应用与无状态应用部署规划
mysql
statefulset控制器
headless service
pv,pvc 存储资源动态供给
tomcat（java应用）
deployment控制器
ClusterIP Service
Ingress 服务暴露实现集群外访问
4.2 项目资源清单文件准备
4.2.1 项目文件总览
[root@harbor java-project]# pwd
/root/javaproject/project-source/pro-source/java-project
[root@harbor java-project]# ls
Dockerfile LICENSE pom.xml README.md src[root@nginx 03_java_project]# ls
01_ns.yaml 02_deployment.yaml 03_service.yaml 04_ingress.yaml 05_mysql.yaml 06_create_pod_busybox.yaml4.2.2 资源清单文件准备
4.2.2.1 namespace资源清单文件
用于实现项目隔离
# cat 01_ns.yaml
apiVersion: v1
kind: Namespace
metadata:
name: javaproject4.2.2.2 部署java项目资源清单文件
用于部署java项目
# cat 02_deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: java-project
namespace: javaproject
spec:
replicas: 2
selector:
matchLabels:
project: www
app: java-demo
template:
metadata:
labels:
project: www
app: java-demo
spec:
imagePullSecrets:
- name: harborreg #认证信息
containers:
- name: tomcat
image: www.kubemsb.com/java-project/java-project:v1 #镜像
imagePullPolicy: Always
ports:
- containerPort: 8080
name: web
protocol: TCP
resources:
requests:
cpu: 0.5
memory: 1Gi
limits:
cpu: 1
memory: 2Gi
livenessProbe:
httpGet:
path: /
port: 8080
initialDelaySeconds: 60
timeoutSeconds: 20
readinessProbe:
httpGet:
path: /
port: 8080
initialDelaySeconds: 60
timeoutSeconds: 204.2.2.3 项目服务（service）资源清单文件
用于创建service
# cat 03_service.yaml
apiVersion: v1
kind: Service
metadata:
name: java-project
namespace: javaproject
spec:
selector:
project: www
app: java-demo
ports:
- name: web
port: 80
targetPort: 80804.2.2.4 Ingress对象资源清单文件
需要提前部署 ingress控制器
# cat 04_ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: java-project
namespace: java-project
annotations:
ingressclass.kubernetes.io/is-default-class: "true"
kubernetes.io/ingress.class: nginx
spec:
rules:
- host: java.lab.example.com
http:
paths:
- pathType: Prefix
path: /
backend:
service:
name: java-project
port:
number: 804.2.2.5 mysql部署资源清单文件
# cat 05_mysql.yaml
apiVersion: v1
kind: Service
metadata:
name: mysql
namespace: javaproject
spec:
ports:
- port: 3306
name: mysql
clusterIP: None
selector:
app: mysql-public
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: db
namespace: javaproject
spec:
selector:
matchLabels:
app: mysql-public
serviceName: "mysql"
template:
metadata:
labels:
app: mysql-public
spec:
containers:
- name: mysql
image: mysql:5.7
env:
- name: MYSQL_ROOT_PASSWORD
value: "123456"
- name: MYSQL_DATABASE
value: test
ports:
- containerPort: 3306
volumeMounts:
- mountPath: "/var/lib/mysql"
name: mysql-data
volumeClaimTemplates:
- metadata:
name: mysql-data
spec:
accessModes: ["ReadWriteMany"]
storageClassName: "nfs-client"
resources:
requests:
storage: 5Gi4.2.2.6 mysql访问测试pod
# cat 06_create_pod_busybox.yaml
apiVersion: v1
kind: Pod
metadata:
name: busybox-pod
spec:
containers:
- name: busybox-container
image: busybox:1.28.4 #此镜像nslookup及ping命令都没有问题，不要下载最新版本和1.31。
imagePullPolicy: IfNotPresent
command:
- sleep
- "3600"
restartPolicy: Always4.3 项目数据库 Mysql部署
4.3.1 创建命名空间
# kubectl apply -f http://yaml.kubemsb.com/03_java_project/01_ns.yaml[root@master01 ~]# kubectl get ns
NAME STATUS AGE
calico-apiserver Active 7d15h
calico-system Active 7d16h
default Active 12d
ingress-nginx Active 2d22h
javaproject Active 6s
kube-node-lease Active 12d
kube-public Active 12d
kube-system Active 12d
metallb-system Active 2d22h
tigera-operator Active 7d16h4.3.2 部署数据库
# kubectl apply -f http://yaml.kubemsb.com/03_java_project/05_mysql.yaml[root@master01 ~]# kubectl get all -n javaproject
NAME READY STATUS RESTARTS AGE
pod/db-0 1/1 Running 0 19s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/mysql ClusterIP None <none> 3306/TCP 19s
NAME READY AGE
statefulset.apps/db 1/1 19s[root@nfs ~]# ls /sdb/
javaproject-mysql-data-db-0-pvc-9f616f77-9995-4f11-ad57-833038186777
[root@nfs ~]# ls /sdb/javaproject-mysql-data-db-0-pvc-9f616f77-9995-4f11-ad57-833038186777/
auto.cnf ca.pem client-key.pem ibdata1 ib_logfile1 mysql private_key.pem server-cert.pem sys
ca-key.pem client-cert.pem ib_buffer_pool ib_logfile0 ibtmp1 performance_schema public_key.pem server-key.pem test4.3.3 导入数据库
[root@harbor project-source]# scp db/test.sql 192.168.10.11:/root[root@master01 ~]# kubectl get pods -n javaproject
NAME READY STATUS RESTARTS AGE
db-0 1/1 Running 0 15m
[root@master01 ~]# kubectl cp test.sql db-0:/ -n javaproject
[root@master01 ~]# kubectl exec -it db-0 -n javaproject -- bash
root@db-0:/# ls
bin dev entrypoint.sh home lib64 mnt proc run srv test.sql usr
boot docker-entrypoint-initdb.d etc lib media opt root sbin sys tmp var
root@db-0:/# mysql -uroot -p123456
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 2
Server version: 5.7.38 MySQL Community Server (GPL)
Copyright (c) 2000, 2022, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> use test;
Database changed
mysql> source /test.sql;
Query OK, 0 rows affected (0.00 sec)
Query OK, 0 rows affected, 1 warning (0.01 sec)
Query OK, 0 rows affected (0.02 sec)
mysql> show tables;
+----------------+
| Tables_in_test |
+----------------+
| user |
+----------------+
1 row in set (0.00 sec)
mysql> desc user;
+-------+-------------+------+-----+---------+----------------+
| Field | Type | Null | Key | Default | Extra |
+-------+-------------+------+-----+---------+----------------+
| id | bigint(20) | NO | PRI | NULL | auto_increment |
| name | varchar(30) | NO | | NULL | |
| age | int(11) | YES | | 0 | |
| sex | char(1) | YES | | 0 | |
+-------+-------------+------+-----+---------+----------------+
4 rows in set (0.02 sec)4.3.4 验证数据库可用性
# kubectl apply -f http://yaml.kubemsb.com/03_java_project/06_create_pod_busybox.yaml[root@master01 ~]# kubectl get pods
NAME READY STATUS RESTARTS AGE
busybox-pod 1/1 Running 0 4s
nfs-client-provisioner-6446865dff-pqtfj 1/1 Running 1 5d22h
[root@master01 ~]# kubectl exec -it busybox-pod -- sh
/ # nslookup db-0.mysql.javaproject
Server: 10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local
Name: db-0.mysql.javaproject
Address 1: 10.224.30.77 db-0.mysql.javaproject.svc.cluster.local
/ # nslookup db-0.mysql.javaproject.svc.cluster.local.
Server: 10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local
Name: db-0.mysql.javaproject.svc.cluster.local.
Address 1: 10.224.30.77 db-0.mysql.javaproject.svc.cluster.local注意：开启代理第一种可能不对
或者
dig -t a db-0.myssql.javaproject.svc.cluster.local @10.96.0.104.4 项目源码编译打包
4.4.1 修改项目连接数据库地址
[root@harbor java-project]# pwd
/root/javaproject/project-source/pro-source/java-project
[root@harbor java-project]# ls
Dockerfile LICENSE pom.xml README.md src
[root@harbor java-project]# cd src/
[root@harbor src]# ls
main
[root@harbor src]# cd main/
[root@harbor main]# ls
java resources
[root@harbor main]# cd resources/
[root@harbor resources]# ls
application.yml log4j.properties static templates

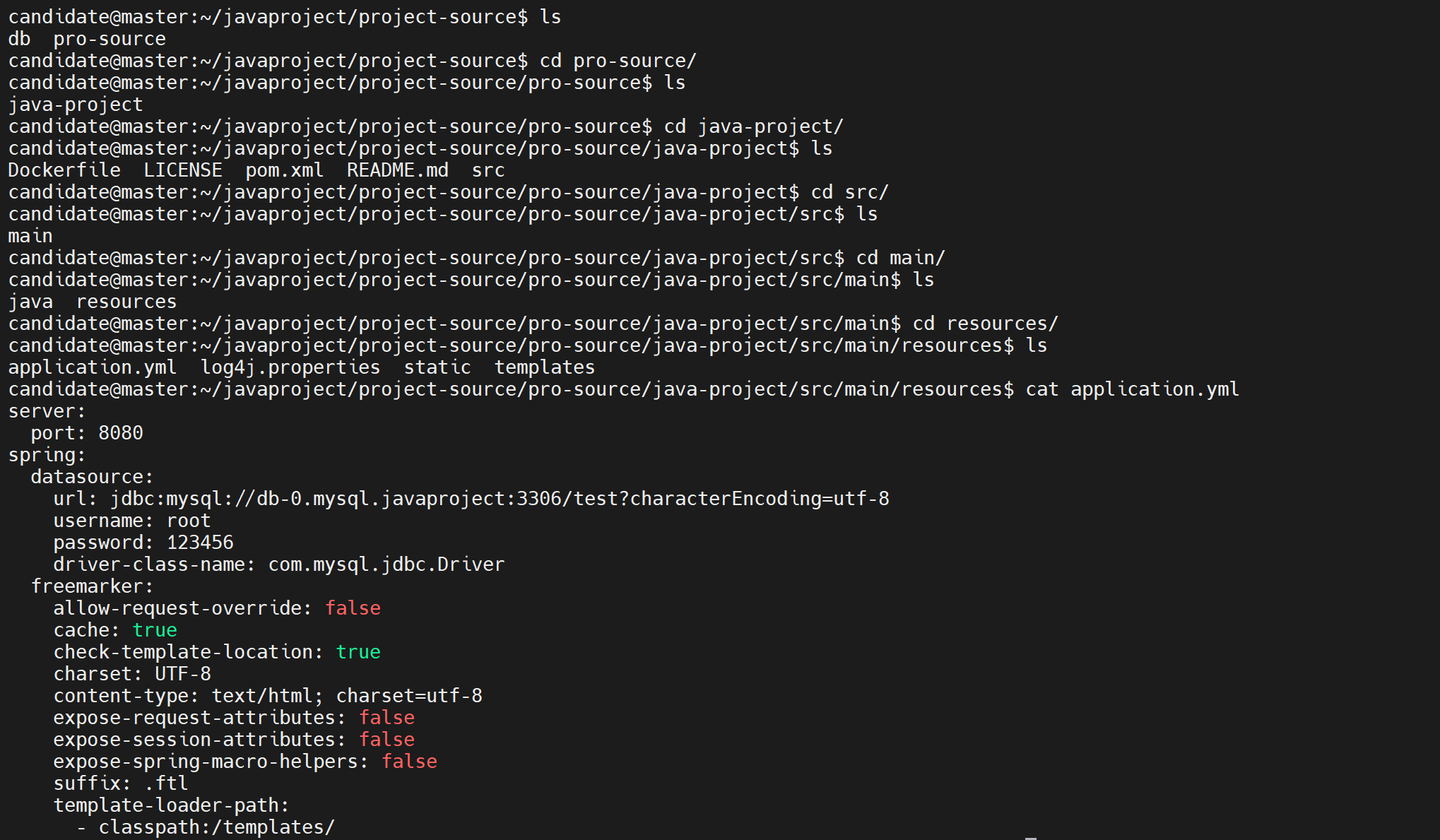

[root@harbor resources]# vim application.yml
[root@harbor resources]# cat application.yml
server:
port: 8080
spring:
datasource:
url: jdbc:mysql://db-0.mysql.javaproject:3306/test?characterEncoding=utf-8
username: root
password: 123456
driver-class-name: com.mysql.jdbc.Driver
freemarker:
allow-request-override: false
cache: true
check-template-location: true
charset: UTF-8
content-type: text/html; charset=utf-8
expose-request-attributes: false
expose-session-attributes: false
expose-spring-macro-helpers: false
suffix: .ftl
template-loader-path:
- classpath:/templates/4.4.2 使用maven编译项目源码
[root@harbor java-project]# pwd
/root/javaproject/project-source/pro-source/java-project
[root@harbor java-project]# mvn clean package
[INFO] Scanning for projects...
[INFO]
[INFO] ---------------------< com.kubemsb:kubemsb-tomcat >---------------------
[INFO] Building kubemsb-tomcat 0.0.1-Test
[INFO] --------------------------------[ war ]---------------------------------
[INFO]
[INFO] --- maven-clean-plugin:3.0.0:clean (default-clean) @ kubemsb-tomcat ---
[INFO]
[INFO] --- maven-resources-plugin:3.0.1:resources (default-resources) @ kubemsb-tomcat ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] Copying 1 resource
[INFO] Copying 136 resources
[INFO]
[INFO] --- maven-compiler-plugin:3.7.0:compile (default-compile) @ kubemsb-tomcat ---
[INFO] Changes detected - recompiling the module!
[INFO] Compiling 7 source files to /root/javaproject/project-source/pro-source/java-project/target/classes
[INFO]
[INFO] --- maven-resources-plugin:3.0.1:testResources (default-testResources) @ kubemsb-tomcat ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] skip non existing resourceDirectory /root/javaproject/project-source/pro-source/java-project/src/test/resources
[INFO]
[INFO] --- maven-compiler-plugin:3.7.0:testCompile (default-testCompile) @ kubemsb-tomcat ---
[INFO] No sources to compile
[INFO]
[INFO] --- maven-surefire-plugin:2.21.0:test (default-test) @ kubemsb-tomcat ---
[INFO] No tests to run.
[INFO]
[INFO] --- maven-war-plugin:3.1.0:war (default-war) @ kubemsb-tomcat ---
[INFO] Packaging webapp
[INFO] Assembling webapp [kubemsb-tomcat] in [/root/javaproject/project-source/pro-source/java-project/target/kubemsb-tomcat-0.0.1-Test]
[INFO] Processing war project
[INFO] Webapp assembled in [166 msecs]
[INFO] Building war: /root/javaproject/project-source/pro-source/java-project/target/kubemsb-tomcat-0.0.1-Test.war
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 4.594 s
[INFO] Finished at: 2022-07-05T12:02:11+08:00
[INFO] ------------------------------------------------------------------------[root@harbor java-project]# ls
Dockerfile LICENSE pom.xml README.md src target
[root@harbor java-project]# ls target/
classes generated-sources kubemsb-tomcat-0.0.1-Test kubemsb-tomcat-0.0.1-Test.war maven-archiver maven-status4.5 生成项目容器镜像制品
[root@harbor java-project]# pwd
/root/javaproject/project-source/pro-source/java-project
[root@harbor java-project]# ls
Dockerfile LICENSE pom.xml README.md src target
[root@harbor java-project]# docker build -t www.kubemsb.com/java-project/java-project:v1 .
Sending build context to Docker daemon 42.44MB
Step 1/4 : FROM www.kubemsb.com/java-project/tomcat:8581
---> 7522e6998fbf
Step 2/4 : LABEL maintainer "admin <[email protected]>"
---> Using cache
---> 4e61597e580c
Step 3/4 : RUN rm -rf /usr/local/tomcat/webapps/*
---> Using cache
---> fda908c158cd
Step 4/4 : ADD target/*.war /usr/local/tomcat/webapps/ROOT.war
---> c74ffbdeae67
Successfully built c74ffbdeae67
Successfully tagged www.kubemsb.com/java-project/java-project:v1[root@harbor java-project]# docker login www.kubemsb.com
Authenticating with existing credentials...
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded

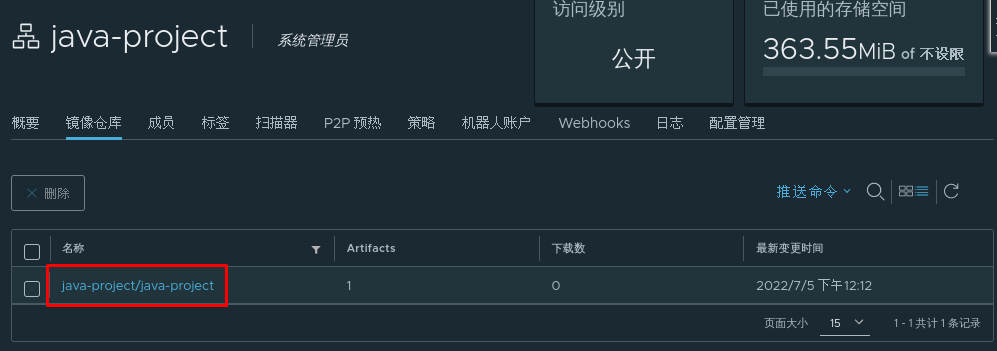

[root@harbor java-project]# docker push www.kubemsb.com/java-project/java-project:v1
4.6 项目部署
# kubectl apply -f http://yaml.kubemsb.com/03_java_project/02_deployment.yaml[root@master01 ~]# kubectl get pods -n javaproject
NAME READY STATUS RESTARTS AGE
db-0 1/1 Running 0 38m
java-project-6f74d5b85c-ckq42 0/1 Running 0 43s
java-project-6f74d5b85c-dvvcl 0/1 Running 0 43s# kubectl apply -f http://yaml.kubemsb.com/03_java_project/03_service.yaml[root@master01 ~]# kubectl get svc -n javaproject
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
java-project ClusterIP 10.106.90.232 <none> 80/TCP 57s
mysql ClusterIP None <none> 3306/TCP 39m# kubectl apply -f http://yaml.kubemsb.com/03_java_project/04_ingress.yaml[root@master01 ~]# kubectl get ingress -n javaproject
NAME CLASS HOSTS ADDRESS PORTS AGE

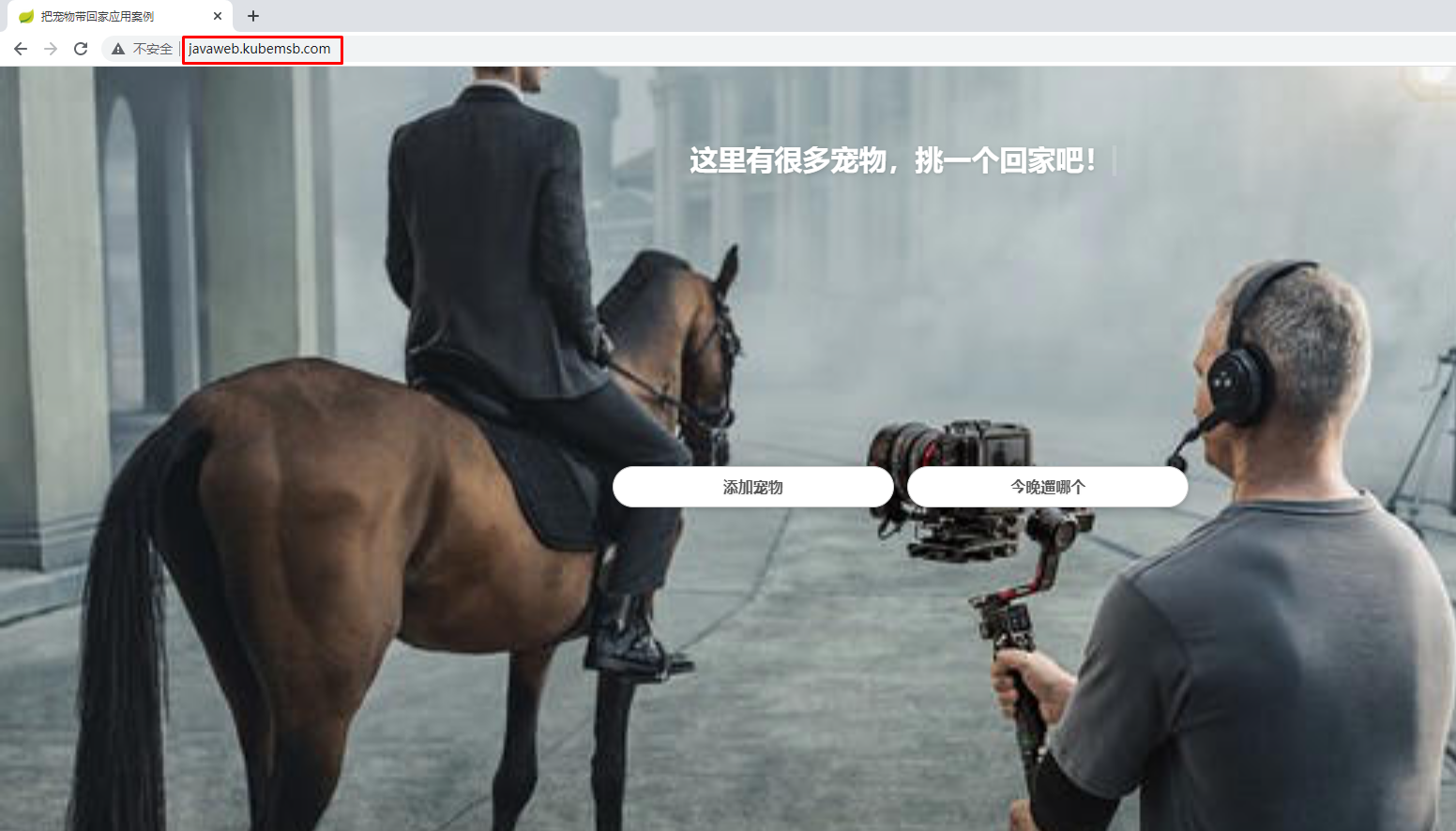

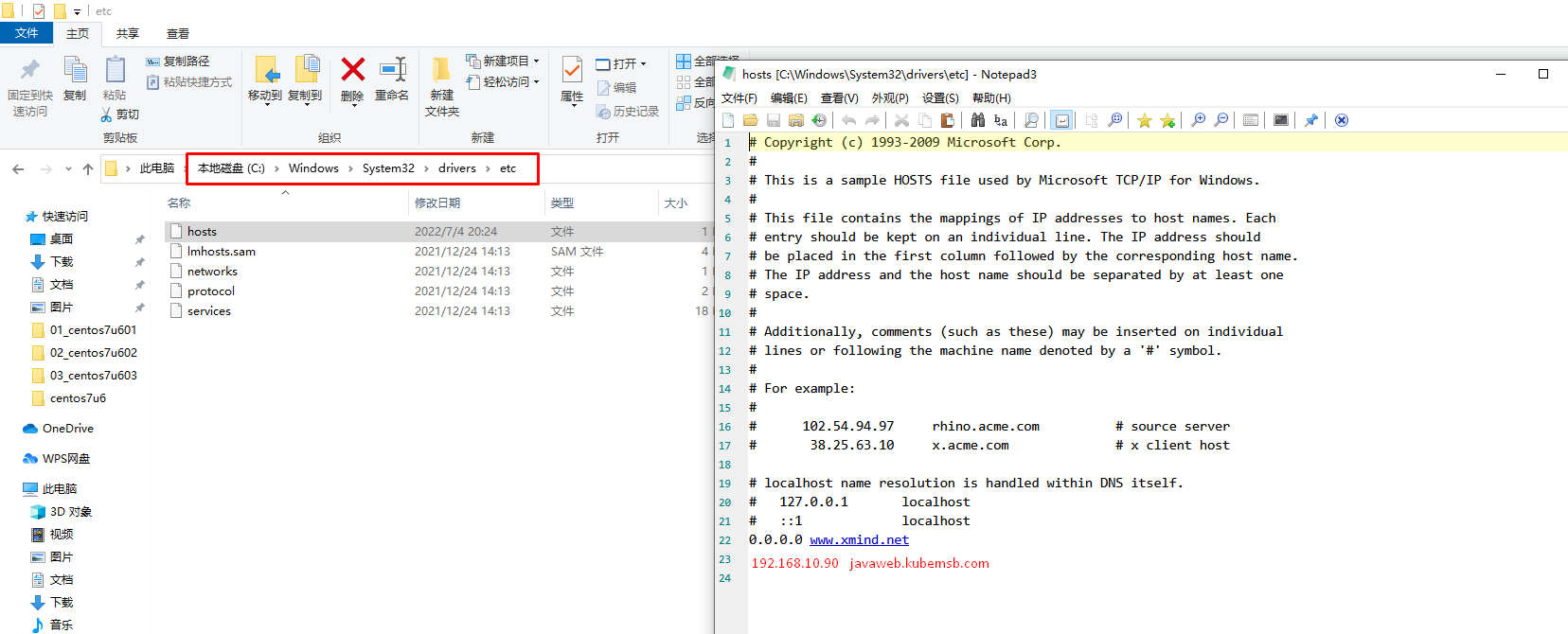

java-project <none> javaweb.kubemsb.com 192.168.10.13 80 73s五、访问验证
[root@master01 ~]# kubectl get svc -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller LoadBalancer 10.97.68.236 192.168.10.90 80:32567/TCP,443:31146/TCP 2d22h
ingress-nginx-controller-admission ClusterIP 10.106.171.219 <none> 443/TCP 2d22h
